High temperature stainless steel M10 thread horizontal liquid magnetic water float level

Product Categories

JSUS ELECTRONIC TECHNOLOGY CO.,LIMITED

Contact Now

Name: High temperature stainless steel M10 thread horizontal liquid magnetic water float level
Brand: JSUS
Price: 1 USD

Place of Origin : CHINA

Brand Name : JSUS

Certification : CE&ROHS

Model Number : JS-YZ02

MOQ : 1000PCS

Price : FOB SHENZHEN

Delivery Time : 5-7 days

Payment Terms : LC,TT,Western Union, Paypal

Supply Ability : 200000pcs/month

Contact Now

Model:JS-YZ02 Water float level sensor

Parameters

Output	10 W	50 W
Max. Switching Voltage	100 VDC	200 VDC
Max. Switching Current	0.5 A	1.5 A
Min. Breakdown Voltage	220 VDC	300 VDC
Max. Carry Current	1.0 A	3.0 A
Max. Initial Contact Resistance Do not include the wire	200 mΩ
Temperature Rating	-40 ~ +150
Material of float & E-ring	SUS316
Material of body	SUS304
Material of screw net	SUS304
Leads	1034UL22AWG430mm length

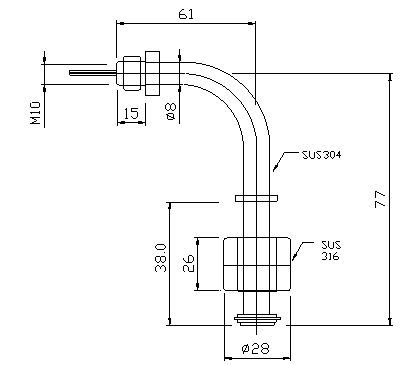

Drawing

High temperature stainless steel M10 thread horizontal liquid magnetic water float level

High temperature stainless steel M10 thread horizontal liquid magnetic water float level Images
