Surface mounted door switch sensor in ABS Housing with size 27*14*8MM

JSUS ELECTRONIC TECHNOLOGY CO.,LIMITED
Contact Now

Surface mounted door switch sensor in ABS Housing with size 27*14*8MM

Place of Origin : China

Brand Name : JSUS

Certification : CE&ROHS

Model Number : JS-38B

MOQ : 1000PCS

Price : FOB SHENZHEN USD

Packaging Details : 20sets/Bag

Delivery Time : 5-7days

Payment Terms : L/C,T/T,Paypal, Western Union

Supply Ability : 200,000sets/month

Reed Switch : OKI

Contact Now

www.jsustech.com

Model:    JS-38B

Brand:     JSUS
Certificate:    CE
Dimension:   27*14*8mm
Housing:    ABS, white/brown
Gap:    15-25mm;    20-25mm available
Output:    N.C.    N.O. & Changeover available
Leads:    1007UL24AWG330mm
Package:
Inner packing:    20sets/Bag
Outer packing:  1600 sets/carton
Gross Weight:    20KG
Remarks:     4 screws included, with double-sided tapes sitcked on the bottom, 3M brand available

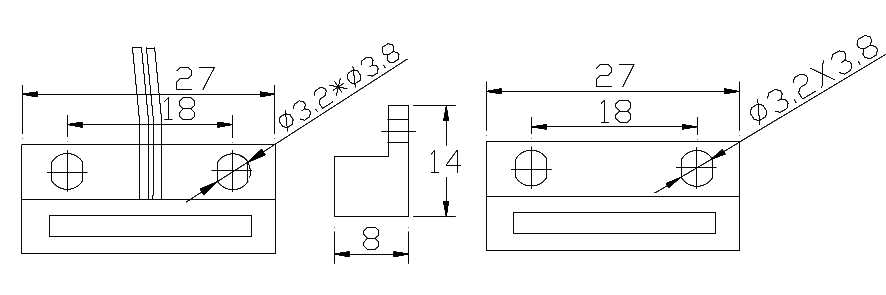

2.0  Dimension(mm)

Surface mounted door switch sensor in ABS Housing with size 27*14*8MM

3.0  Order information





Specification Output Casing Material Action Gap(mm) Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ) MOQ(PCS)
NC-ABS-1525 NC ABS 15-25 0.5A/100V/10W/200mΩ 0
NC-ABS-1525 NC ABS 15-25 0.5A/100V/10W/200mΩ 1000
NO-ABS-1525 NO ABS 15-25 0.5A/30V/3W/200mΩ 500

Key words : magnetic contact reed switch magnetic switch sensor door switch sensor surface mount switch
