CE Certified Surface mounted door switch sensors in ABS Material With gap of 20-25MM

Name: CE Certified Surface mounted door switch sensors in ABS Material With gap of 2025MM
Brand: JSUS
Price: 1 USD

Buy cheap CE Certified Surface mounted door switch sensors in ABS Material With gap of 20-25MM product

Place of Origin : China

Brand Name : JSUS

Certification : CE&ROHS

Model Number : JS-42

MOQ : 1000PCS

Price : FOB SHENZHEN USD

Packaging Details : 20sets/Bag

Delivery Time : 5-7days

Payment Terms : L/C,T/T,Paypal, Western Union

Supply Ability : 200,000sets/month

Color : White or Brown

Contact Now

www.jsustech.com

Model: JS-42

door switch sensors

Brand: JSUS
Certificate: CE
Dimension: 50*14*12mm
Housing: ABS, white/brown
Gap: 15-25mm 20-25mm availalble
Output: N.C. N.O. & Changeover available
Package:
Inner packing: 10sets/PE ,
Outer packing: 800 sets/carton
Gross Weight: 20KG
Remarks: 4 screws included

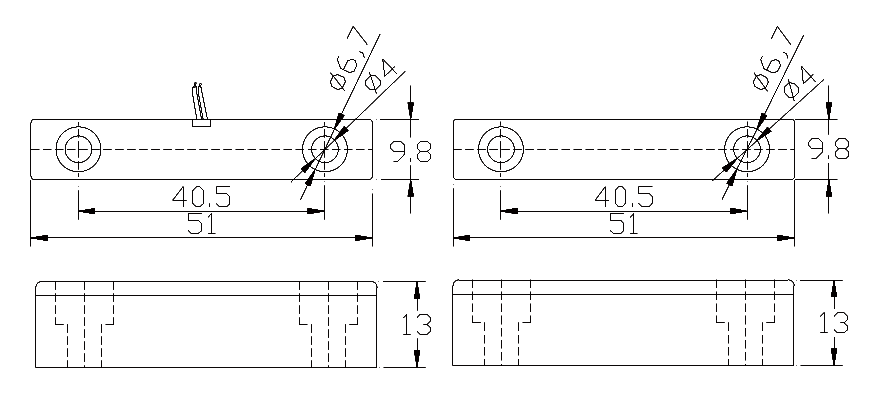

2.0 Dimension(mm)

CE Certified Surface mounted door switch sensors in ABS Material With gap of 20-25MM

3.0 Order information

Specification	Output	Casing Material	Action Gap(mm)	Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ)	MOQ(PCS)
NC-ABS-3040	NC	ABS	30-40	0.5A/100V/10W/200mΩ	200
NC-ABS-2025	NC	ABS	20-25	0.5A/100V/10W/200mΩ	0
NO-ABS-2530	NO	ABS	25-30	0.2A/30V/3W/200mΩ	500

Key words : magnetic contact reed switch magnetic switch sensor door switch sensor surface mount switch

CE Certified Surface mounted door switch sensors in ABS Material With gap of 20-25MM Images
